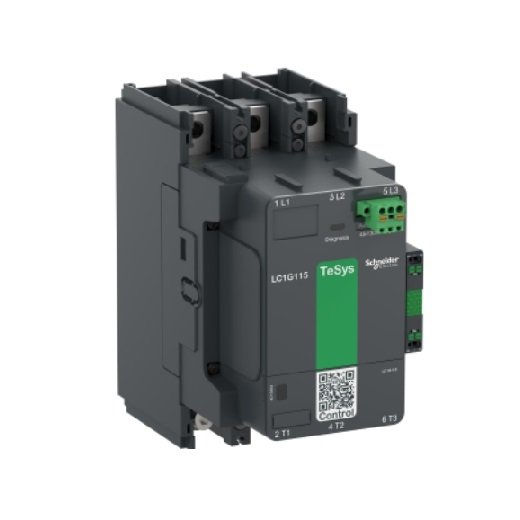

Schneider, Contactor Giga range, High Durability and Features, 3Pole , 185amp, Coil 100-250 V AC/DC

LC1G185KUEN

TeSys Giga high power contactor ,3 poles (3NO),

For motor control applications up to 185A/690V AC-3/3e (110kW@440V)

It provides a 100-250V AC/DC coil

1NO+1NC built-in auxiliary contacts (NC mirror certified),

Connection by screw clamp terminals.

For operating rates until 500 cycles/hour and environments until 60°C,

It procures high reliability and durability.

Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators.

The dimension is 193mm x 108mm x 193mm (H x W x D),

Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
