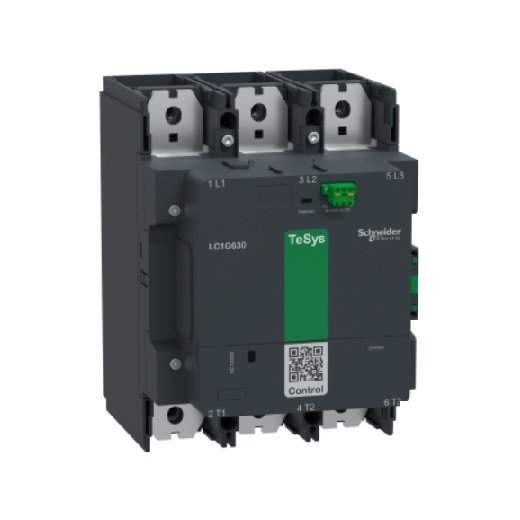

Schneider, Contactor Giga range, High Durability and Features, 3Pole , 800amp, Coil 100-250 V AC/DC

LC1G800KUEN

TeSys Giga high power contactor ,3 poles (3NO),

For motor control applications up to 800A/690V AC-3/3e (450kW@440V)

It provides a 100-250V AC/DC coil

1NO+1NC built-in auxiliary contacts (NC mirror certified),

Connection by screw clamp terminals.

For operating rates until 600 cycles/hour and environments until 60°C,

It procures high reliability and durability.

Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators.

The dimension is 324mm x 210mm x 248mm (H x W x D),

Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
