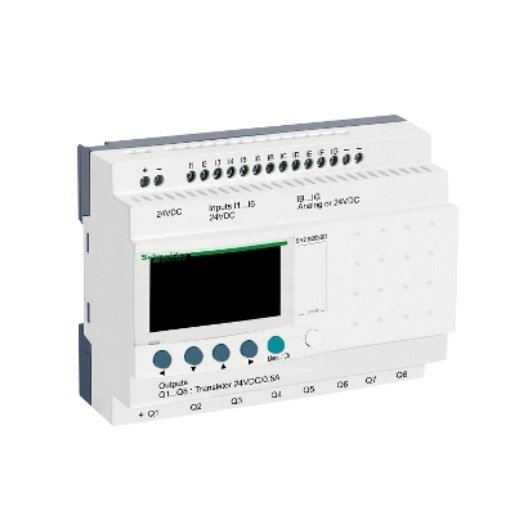

Schneider, Compact smart relay Zelio Logic – 20 I O – 24 V DC – clock – display

SR2B202BD

This product is part of Smart Relay – Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os.

This Zelio Logic compact smart relay features 20 I/Os, local display, 0 to 240 with ladder and 0 to 500 with FBD programming control scheme lines.

It is a module with rated supply voltage of 24V DC and cycle time of 6ms to 90ms.

It offers 12 resistive discrete inputs with voltage of 24V DC, 6 analogue input ranges from 0V to 10V, 0V to 12V and 8 transistor outputs with voltage of 24V.

It is an IP20 and IP40 rated product.

It weighs 0.28kg.

The main application of this module is industry and building/service sector.

This product is certified by C-Tick, GL, UL, CSA and GOST.

It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards.

Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
