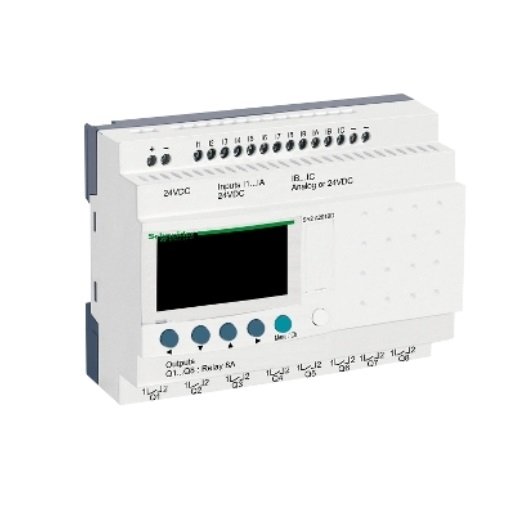

Schneider, Compact smart relay Zelio Logic – 20 I O – 24 V DC – no clock – display

SR2A201BD

This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os.

The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards.

It comes with display and without clock. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines.

Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards

It offers 8 relay outputs with normally opened contact and 12 discrete inputs.

It has a rated supply voltage of 24V DC, a maximum supply current of 100mA (without extension) and a power consumption of 6W without extension.

It is an IP20 and IP40 rated product.

It weighs 0.38kg.

This product meets EN/IEC 61000-4-5, EN/IEC 61000-4-6 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-12, EN/IEC 61000-4-11, EN/IEC 61000-4-3, EN/IEC 61000-4-2 level 3, EN/IEC 60068-2-27 Ea and EN/IEC 61000-4-4 level 3 standards.

Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible,

it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER).

Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
