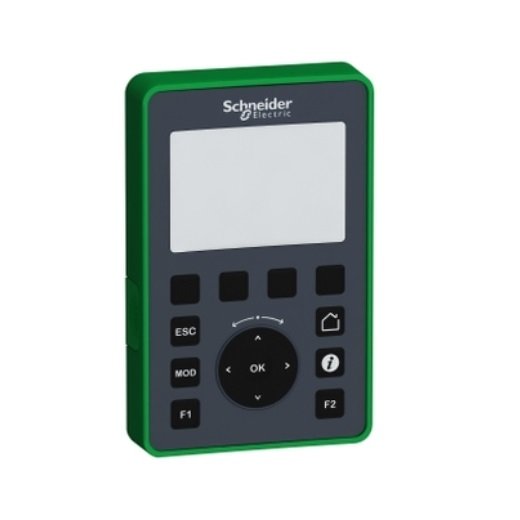

Schneider, Graphic display unit – 240 x 160 pixels

TMH2GDB

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures.

This graphic display unit features a backlit colour STN LCD display.

The display supports 240 x 160 pixels of resolution with monochrome display colour.

The unit is equipped with RJ45 for communication and power supply.

The keypad contains 4 configurable keys and 6 keys for navigation.

It is an IP20 and IP65 rated product.

Its dimensions are 80mm (Width) x 63mm (Depth) x 126mm (Height).

It weighs 0.17kg.

This product is certified by CE and CULus.

It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards.

This display is compatible with Modicon M221 logic controller.

Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
