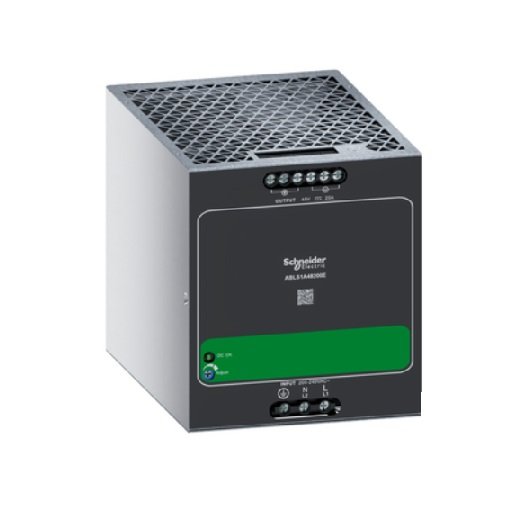

Schneider, Power supply, Phaseo Easy ABL2, single phase, 200 to 240V AC input, 48V DC output, 960W, DIN rail, IP20

ABLS1A48200E

This product is part of the Easy Modicon ABL2 series of single-phase power supply units.

This is a single-phase DIN rail-mounted power supply unit with a 48V DC output, a rated output of 960W, and a rated current of 20A.

Designed to ensure a stable power supply for general industrial applications,

it is suitable for loads such as small to medium-sized PLCs, sensors, HMIs, I/O modules, switches, and encoders.

The rated input voltage is 200-240V AC, and the operating voltage range is 180-264V AC.

Overload protection is provided up to 110-130%.

External dimensions are 110mm (W) x 125mm (H) x 150mm (D), and the weight is 2200g.

The Easy Modicon PSU series is designed as a cost-effective power supply solution for general industrial applications.

It complies with the IEC/EN 62368-1 safety standard and UL 508, and is compliant with the cULus, RoHS, and REACH directives.

It features six output terminals for easy wiring and has an IP20 protection rating.

A voltage adjustment potentiometer is included to compensate for voltage drop during long-distance wiring.
