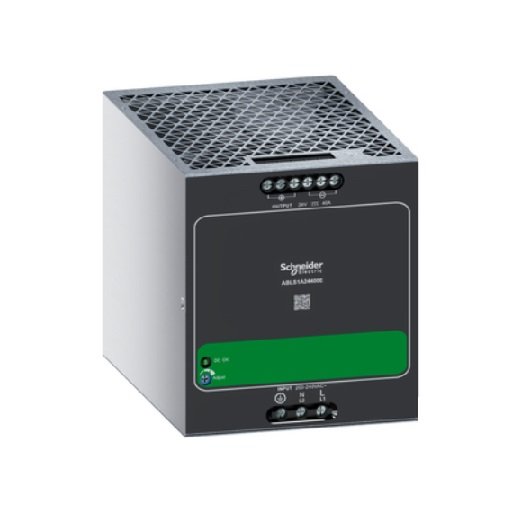

Schneider, Single phase power supply, 100 to 240V AC input, 24V DC output, 480W, Din-rail, IP20

ABLS1A24400E

This product is part of the Easy Modicon ABL2 series of single-phase power supply units.

This is a single-phase DIN rail-mounted power supply unit with a 24V DC output, a rated output of 960W, and a rated current of 40A.

Designed to ensure a stable power supply for general industrial applications, it is suitable for loads such as small to medium-sized PLCs, sensors, HMIs, I/O modules, switches, and encoders.

The rated input voltage is 200-240V AC, and the operating voltage range is 180-264V AC.

Overload protection is provided up to 110-130%.

External dimensions are 110mm (W) x 125mm (H) x 150mm (D), and the weight is 2200g.

The Easy Modicon PSU series is designed as a cost-effective power supply solution for general industrial applications.

It complies with IEC/EN 62368-1 safety standards and UL 508, and is compliant with cULus, RoHS, and REACH directives.

It features six output terminals for easy wiring and has an IP20 protection rating.

A voltage adjustment potentiometer is included to compensate for voltage drop during long-distance wiring.
