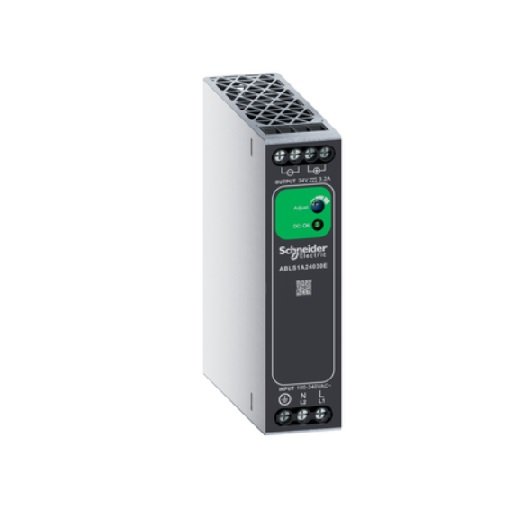

Schneider, Single phase power supply, 100 to 240V AC input, 24V DC output, 75W, Din-rail, IP20

ABLS1A24030E

This product is part of the Easy Modicon ABL2 range, an offer of single-phase power supply units.

It is a single-phase din-rail mounted PSU.

It has a 24V DC output, a nominal power of 76.8W, and a nominal current of 3.2A.

It is designed for general industries to secure power supply, suitable for loads such as Mid and small-size PLC, Sensors, HMI, I/O modules, switches, Encoders.

It works at a rated voltage range from 100V to 240V AC and an operating voltage range from 90V to 264V AC.

Overload protection could reach 110 to 130percent.

Its dimensions are 32mm (width) x 125mm (height) x 102mm (depth) and weighs 396g.

The range of Easy Modicon PSU has been designed mainly as cost-efficient power supply unit solution for general industries.

It follows IEC/EN 62368-1 safety standards and UL 508 regulations.

It is compliant with cULus Listed, RoHS, and REACH directives.

It is equipped with 4 output terminals, making wiring easier.

It has an IP20 degree of protection. It is equipped with an output voltage adjustment potentiometer to be able to compensate for any voltage drops in installations with long cable runs.
